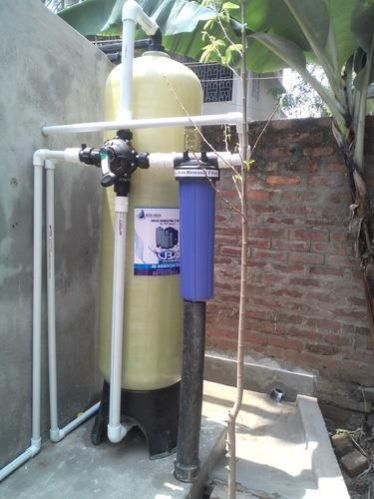

IRON REMOVAL PLANT




providing german filtration system: instant oxide dosing system disinfection, sedimentation & converts ferrous bicarbonate to ferric hydroxide. Recurring costing rs.5000 per month

  1. katalox light filter (german media )
  • iron filtration
  • suspended solids filtration
  • organic filtration
  • sediments filtration
  • suspended solids filtration
  • color
  • odour
  • manganese
  • upto 3 micron filtration
  • media replacement after 3-4 years

 2. zeosorb filter media ( german technology)

  • turbidity
  • upto 1 micron filtration.
  • media replacement after 3-4 years

 technical specification for ironremoval filtration plant 5000 gph

instant oxide dosing pump (automatic)

quantity                                                            one

make                                                                apex /innitiative

capacity                                                        0-6 lph

dosing ratio                                     500 ml: 5 liter water

purpose: disinfection, sedimentation & converts dissolved ferrous iron to hydrated ferric.

katalox light  chamber ( german media )

quantity                                                            one

make                                                                apex

dia                                           (inch)                36

height                                       (inch)                72

max. Working pressure              (kg/cm2)           4.5 – 6

m o c                                                               frp top&bottom

filtering stage                           two                 katalox light & gravels

vessel volume                          (liter.)               450

filter media                               (liter.)               510

free board                                (25%)                50 liters

distribution system                                           10 m3 hobs & lateral type

 purpose: removes iron, organics, odour & upto 3 micron filtrati

 zeosorb filter media chamber ( german media )

quantity                                                            one

make                                                                apex

dia                                           (inch)                36

height                                       (inch)                72

max. Working pressure              (kg/cm2)           3.5 – 4

m o c                                                               frp top&bottom

filtering stage                           two                 zeosorb & gravels

vessel volume                          (liter.)               450

filter media                               (liter.)               510                                                       free board                               (25%)                50 liters

distribution system                                           10 m3 hobs & lateral type

purpose: filters turbidity and upto 1 micron filtration


Specifications

Brand Name APEX

Additional Information

Payment Terms T/T
